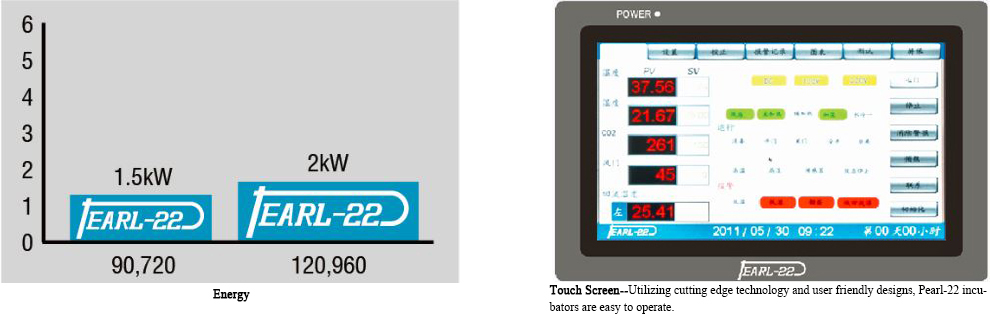

Energy savings ：
a）90720 Eggs ：1.5kW
120960 Eggs ：2.0kW
Pearl-22 single stage incubator using small fan motors are more energy efficient and can produce chicks with lower operating cost.

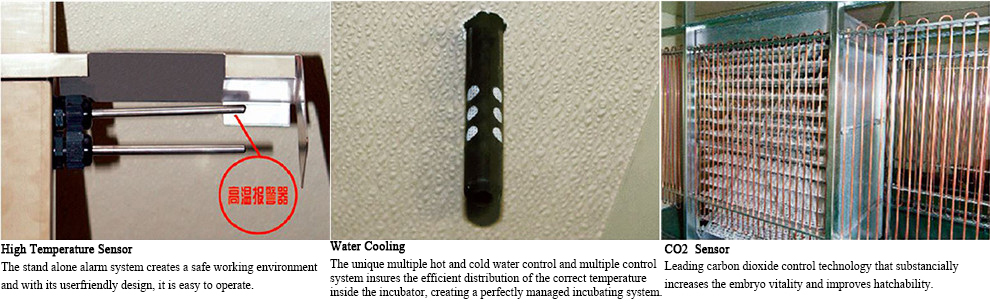

b）Hot and cold water system of the Pearl-22 incubator provides the correct amount of temperature needed in every stage of incubation. Pearl-22 single stage incubator needs
50-55 degree Celsius of hot water to help stabilize the temperature inside the incubator.
Accurate control for efficient distribution of temperature
Pearl-22 single stage incubator creates multiple partitions. Each partition can efficiently control the temperature by utilizing PT sensor. The heat-up and cool-down can be separately controlled and ensure uniformity of hatching and shorten the hatch window.
CO2 Control
a）Promotes chicks vascular and organ development.
b）It can increase the hatchability of eggs and improve chick quality.
Basic parameters ：
| Dimensions(mm） | Standard | 3,916×4,100×2,524 | 2,660×5,152×2,524 | 2,660×6,276×2,524 | 3,916×6,276×2,524 | 5,172×6,276×2,524 |
| Big Size | 4,114×4,184×2,618 | 2,792×5,278×2,618 | 2,792×6,444×2,618 | 4,114×6,444×2,618 | 5,436×6,444×2,618 | |
| Total Egg Capacity | Chick 45360 | Chick 45360 | Chick 60480 | Chick 90720 | Chick 120960 | |
| Duck 28080 | Duck 28080 | Duck 56160 | ||||
|
Rack Quantity |
6 | 6 | 8 | 12 | 16 | |
|
Power Capacity |
7kW | 5.9kW | 8.3kW | 9.7kW | 11.1kW | |
|
Power Source |
3Φ 220/380V 50/60Hz | 3Φ 220/380V 50/60Hz | 3Φ 220/380V 50/60Hz | 3Φ 220/380V 50/60Hz | 3Φ 220/380V 50/60Hz | |
|
Turning Style |
Compress Air | Compress Air | Compress Air | Compress Air | Compress Air | |
